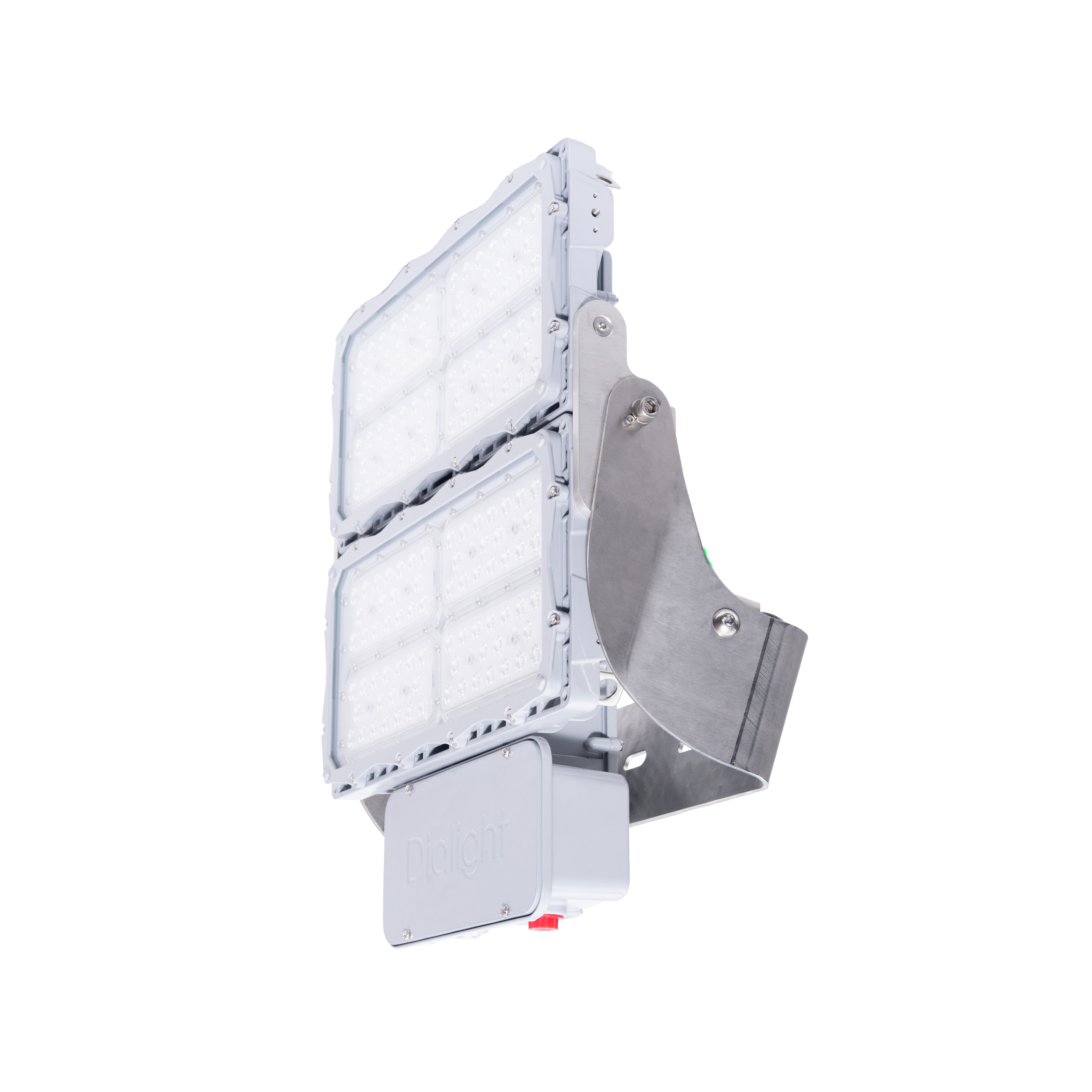

The new ProSite Heavy-Duty Series is an extension of our highly popular ProSite Floodlight series. This new model includes a new reinforced bracket solution for mobile plant and equipment such as container cranes, stackers, reclaimers, dragline excavators etc. serving ports and mining markets. Designed to address the need for servicing mobile machinery with extreme vibration, the ProSite Heavy-Duty Series minimizes light flicker and ensures uniform illumination.
| ProSite – Heavy-Duty Series | ||
|---|---|---|
| Certifications | UL 1598/A, UL 844, UL924, CE, ENEC, RCM | |
| Ratings | IK10 (integrated PC optic/lens/lens cover), IK08 (glass lens) | |
| Lens | Integrated PC Optic/Lens, Glass Lens Cover, PC Lens Cover | |
| Beam Distribution | NEMA 4, NEMA 6, NEMA 7x6, Asymmetric, Asymmetric Wide | |
| CCT & CRI | Cool White 5000K, Neutral White 4000K, Warm White 2700K, Warm White 2200K, Amber | |
| Operating Voltage | 120-277 VAC | |
| Lumen Type | Up to 65,000 lumens | |
| Mounting Options | 316 SS Heavy-Duty | |
| Coating | Superior epoxy and polyester dual coat finish | |
|
||
