NSF Linear - FBL
NSF Linear - PLL

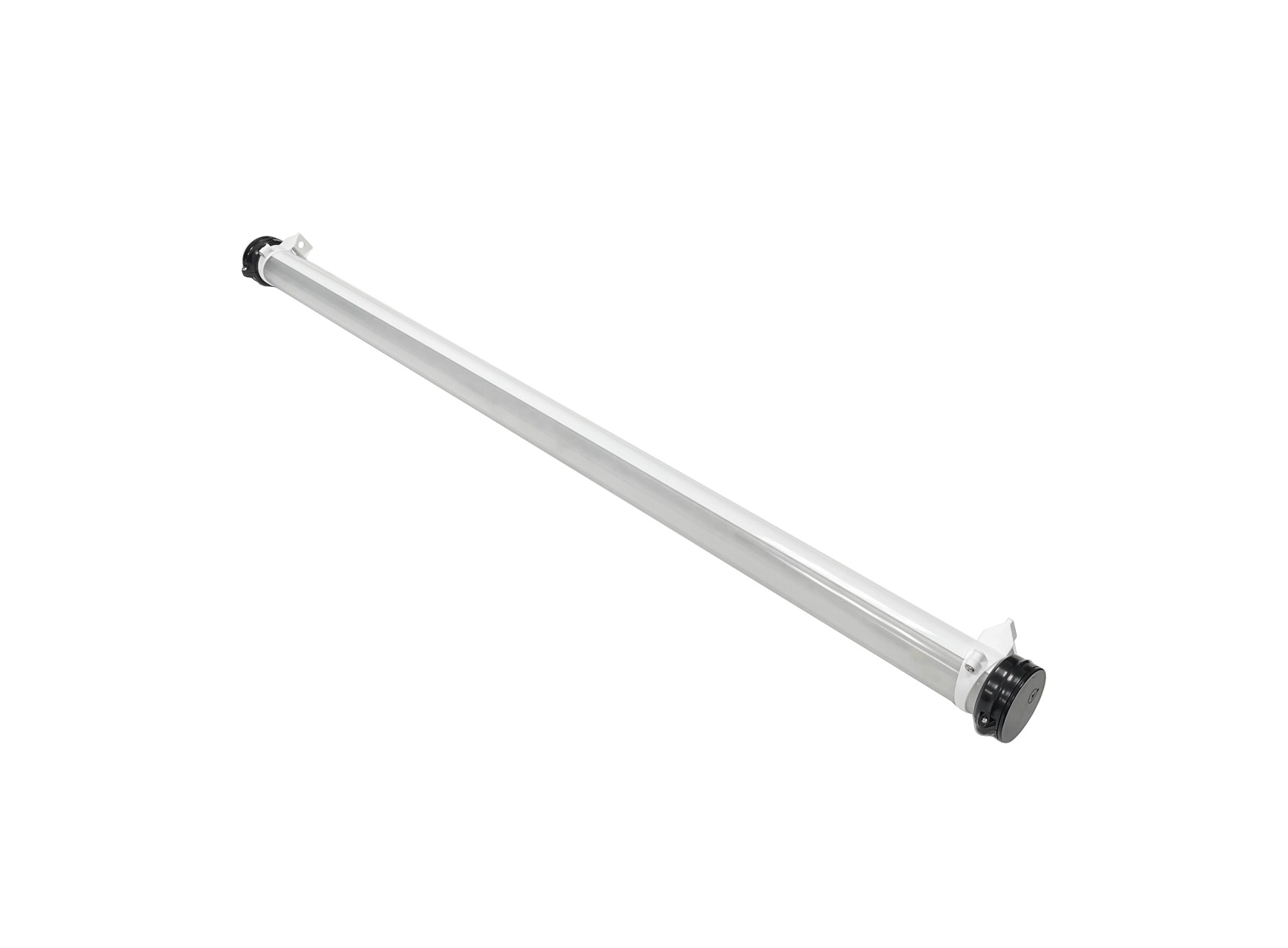

Dialight’s DuroSite LED NSF Linear is designed to perform in freezer and processing line areas in Food & Beverage applications. With a seamless coextruded copolyester housing and chemically-sealed end caps, the NSF-certified, IP69K rated linear is built to withstand extreme temperature swings & daily wash-downs, all backed by Dialight’s 5-year warranty.
| DuroSite® LED Linear – NSF | ||
|---|---|---|
| Certification | NSF, UL 1598 (wet location), cULus | |
| Ratings | IP69K, NEMA 4X | |
| Housing/Lens | Coextruded Copolyester housing with diffused lens | |
| Beam Distribution | Medium | |
| CCT & CRI | Cool White 5000K, Neutral White 4000K; 80 CRI | |
| Operating Voltage | 120-277 VAC | |
| Lumen Type | 5,000 – 20,000 (FBL); 8,000 – 16,000 (PLL) | |
| Mounting Options | Suspension (standard), Surface mounting kit, Wall mounting kit, Wall/Surface Combo mount (ordered separately) | |
| Hardware/Cable Options | Mini-Change receptacle (standard), 6ft or 20ft power cable sold separately | |
|
||
