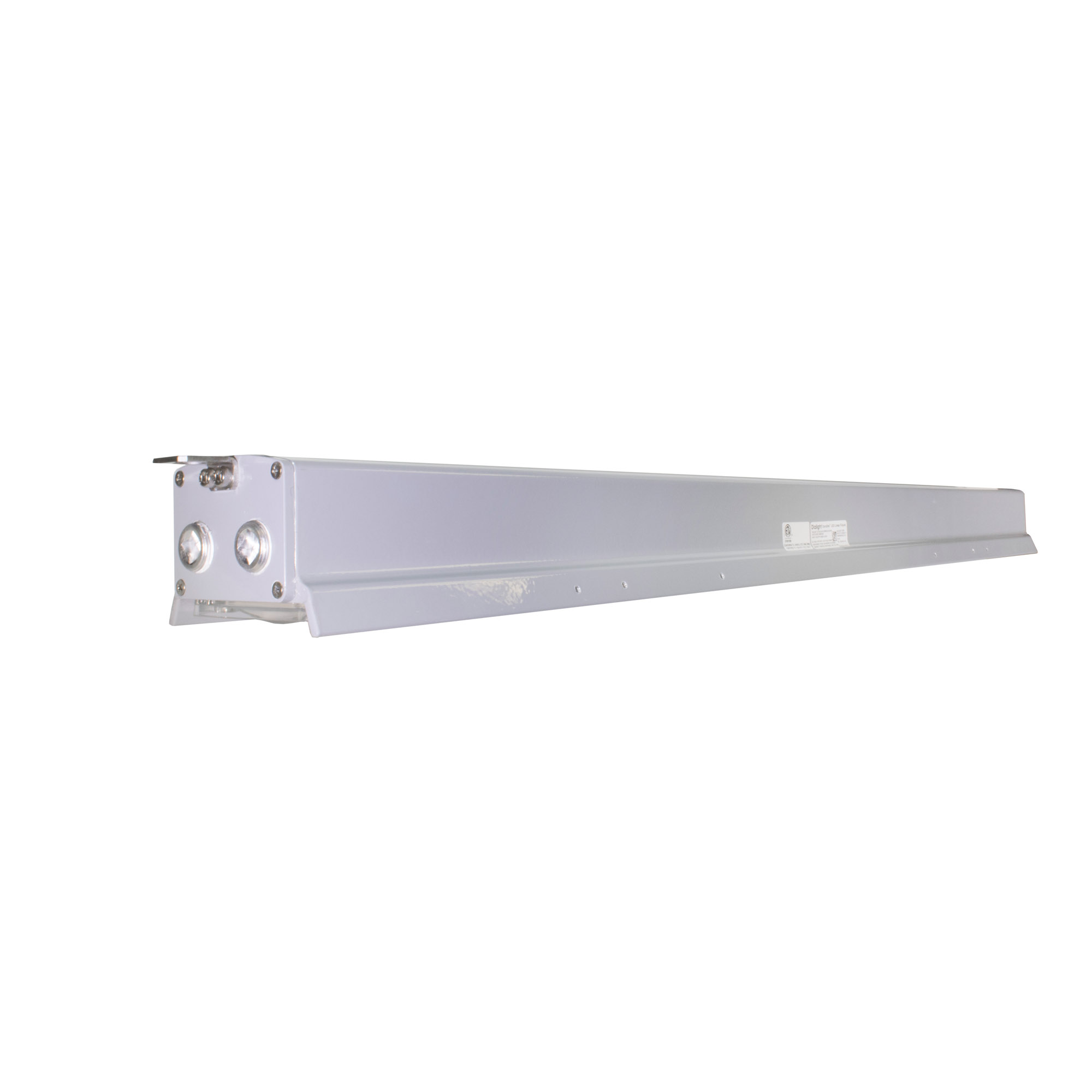

SafeSite® LED Linear – End-to-End

end-to-end linear, led linear lighting, led linear

End to End Linear

Dialight’s SafeSite LED End-to End Linear is the most efficient linear in the Dialight portfolio with up to 125 lm/W. It also comes with the following hazardous location certifications: UL 844 (CID2, CIID1, CIID2, CIII). The linear’s conveniently located wire boxes make installation quick and easy. The fully extruded aluminum fixture with low copper content gives it extreme corrosion resistance for use in highly industrial environments.

ETL, UL listed, Intertek
SafeSite® LED Linear – End-to-End
CertificationUL 844 (CID2, CIID1, CIID2, CIII), CSA
RatingsIP66/67, NEMA 4X
LensPolycarbonate (Clear, Diffused)
Beam DistributionMedium
CCT & CRICool White 5000K, Neutral White 4000K; 80 CRI
Operating Voltage120-277 VAC
Lumen Type3,500-7,500 lumens
Mounting OptionsSafety tabs (standard), Swivel mounting bracket, Ceiling mounting bracket, Flush mounting bracket
Hardware/Cable OptionsNo cable
CoatingGrey (RAL 7040)
