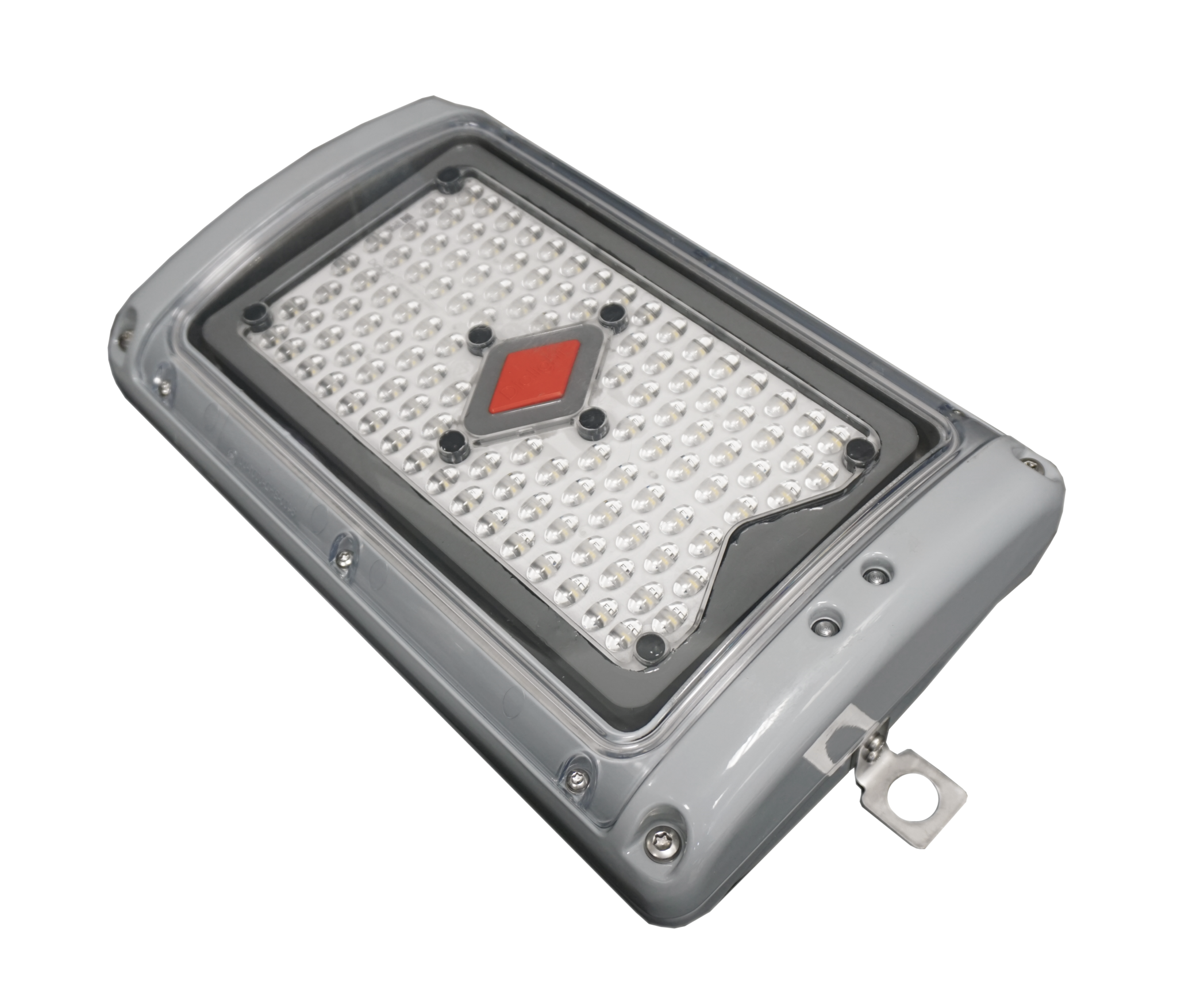

SafeSite® LED Bulkhead

The Dialight SafeSite® LED Bulkhead luminaire backed by Hazardous Area Certification, Zone 1, 2, 21 and 22, UL844 CID2, CIID2, CIII, CSA C22.2 No. 137, is a premium durable, compact and versatile lighting solution, designed to keep hazardous areas illuminated and safe. This product offers a reliable and cost-effective solution for retrofitting existing projects, or for installation at greenfield projects. Constructed with marine grade aluminium and producing up to 150 lumens per watt, the SafeSite Bulkhead can offer a two-for-one substitute for traditional lighting solutions, maximising installation savings.

WHERE TO BUY

Warranty Case Studies Catalogs
Specifications Summary
Downloadable Resources
SafeSite® LED Bulkhead
CertificationIECEx/ATEX (Zone 1, 21, Zone 2, 22), UL844 CID2, CIID2, CIII, CSA C22.2 No. 137
RatingsIP66/67, NEMA 4x, IK10
LensPolycarbonate (Clear, Diffused, Domed Diffused)
Beam DistributionCircular (Type 5), Ultra-Wide (Type 1)
CCT & CRICool White 5000K; Neutral White 4000K; 2700K Warm White; Amber; Green
Operating Voltage100-277 VAC, 120-250 VDC
Lumen Type3,000 & 6,500 lumens

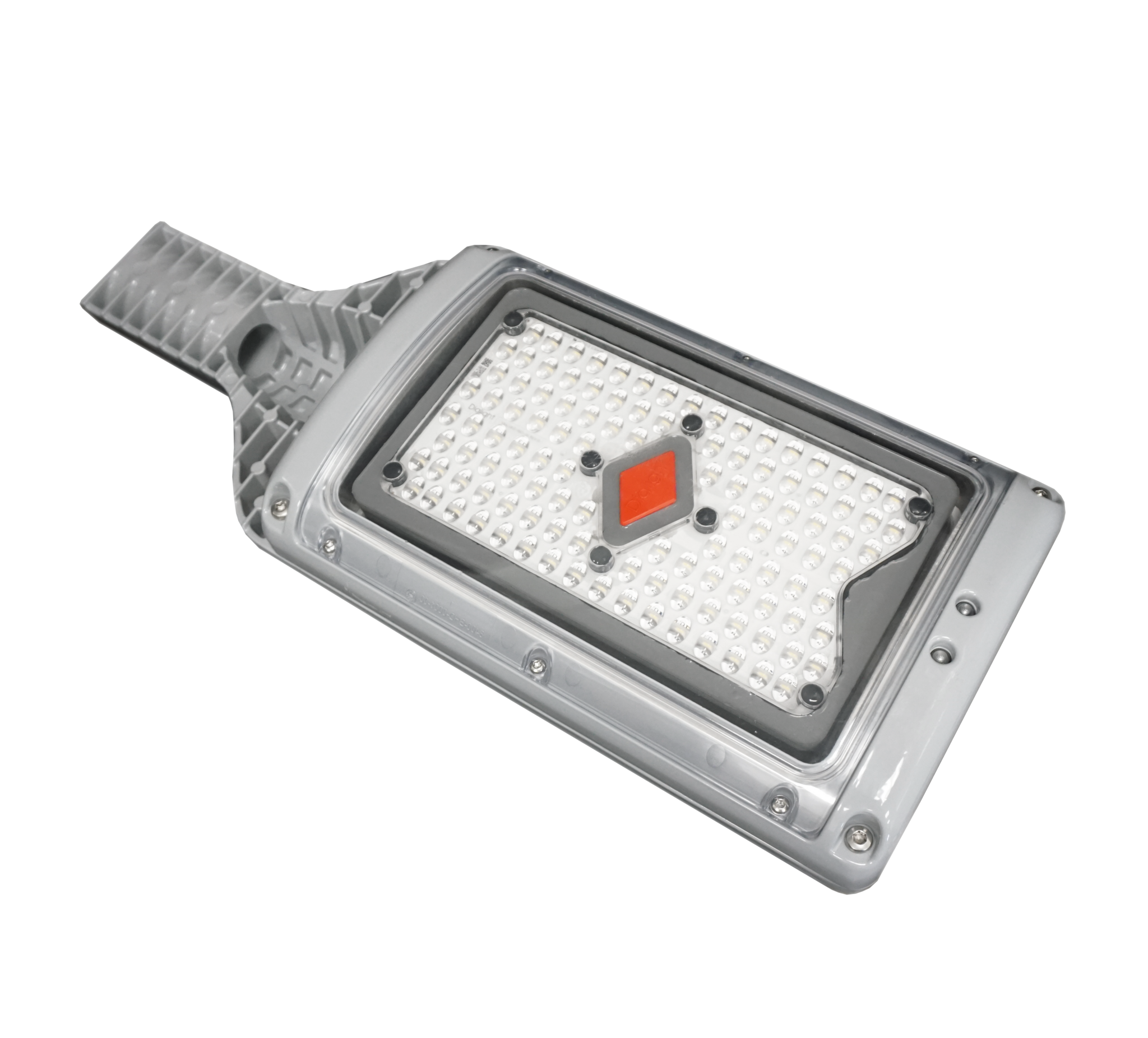

Mounting OptionsFlush Mount, Stanchion Mount, and Pole Mount (Stainless Steel and Aluminium options available)
CoatingGrey (RAL 7040)
Features & Benefits
  • 10 year warranty
  • Up to 149 lm/W
  • Operating temperature range:
    Standard Models: -40°C to +65°C (-40°F to +149°F)
    Battery Backup: -20°C to +55°C (-4°F to +131°F)
