Kuehne & Nagel Case Study – UK (Industrial / Logistics...

Case Study: Kuehne & Nagel
United Kingdom

Global logistics provider sees payback from LEDs in just over a year.

Global logistics provider Kuehne + Nagel is committed to offering robust, sustainable and innovative supply chain solutions that continually reduce impact on the environment. Operating over 100 warehouses across the UK, the company recognised an opportunity to radically reduce its energy consumption by replacing the current lighting at its Minworth facility near Birmingham with a more energy efficient technology. In selecting LED technology as the solution, this facility was able to cut its energy needs and achieve additional savings on maintenance as well as vastly improving the quality of light for its workers.

The lighting challenge

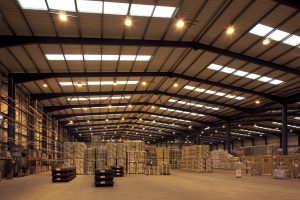

Kuehne and Nagel before LED lightsKuehne + Nagel’s Minworth facility consists of two warehouses with a linking area jointly covering 20,000 square metres. The older of the two buildings was fitted with 136 x 250W high pressure sodium lamps (HPS), the newer facility with 100 x 400W HPS and the linking bay with a few metal halides.

Engineering Manager Kevin Greene explains the lighting challenge:

“Overall we wanted to save energy, but we also wanted to improve light quality. We found that the 250W HPS did not provide sufficient light quality in the older warehouse, which is why we moved to 400W HPS in the newer warehouse. However, they were actually averaging about 280W and 430W of power respectively. Also, sodium lights are not very effective at night and make it hard for the workers to read labels.”

He adds: “In our warehouses, the sodium lights are running 24/7 and need changing every 20,000 hours. A scissor lift is required to reach them at 13 metres, which involves considerable cost, inevitable work interruption, and there is the additional problem of dealing with hazardous waste when you dispose of them. There were plenty of reasons to look for a more efficient lighting solution.”

Why Kuehne + Nagel chose Dialight

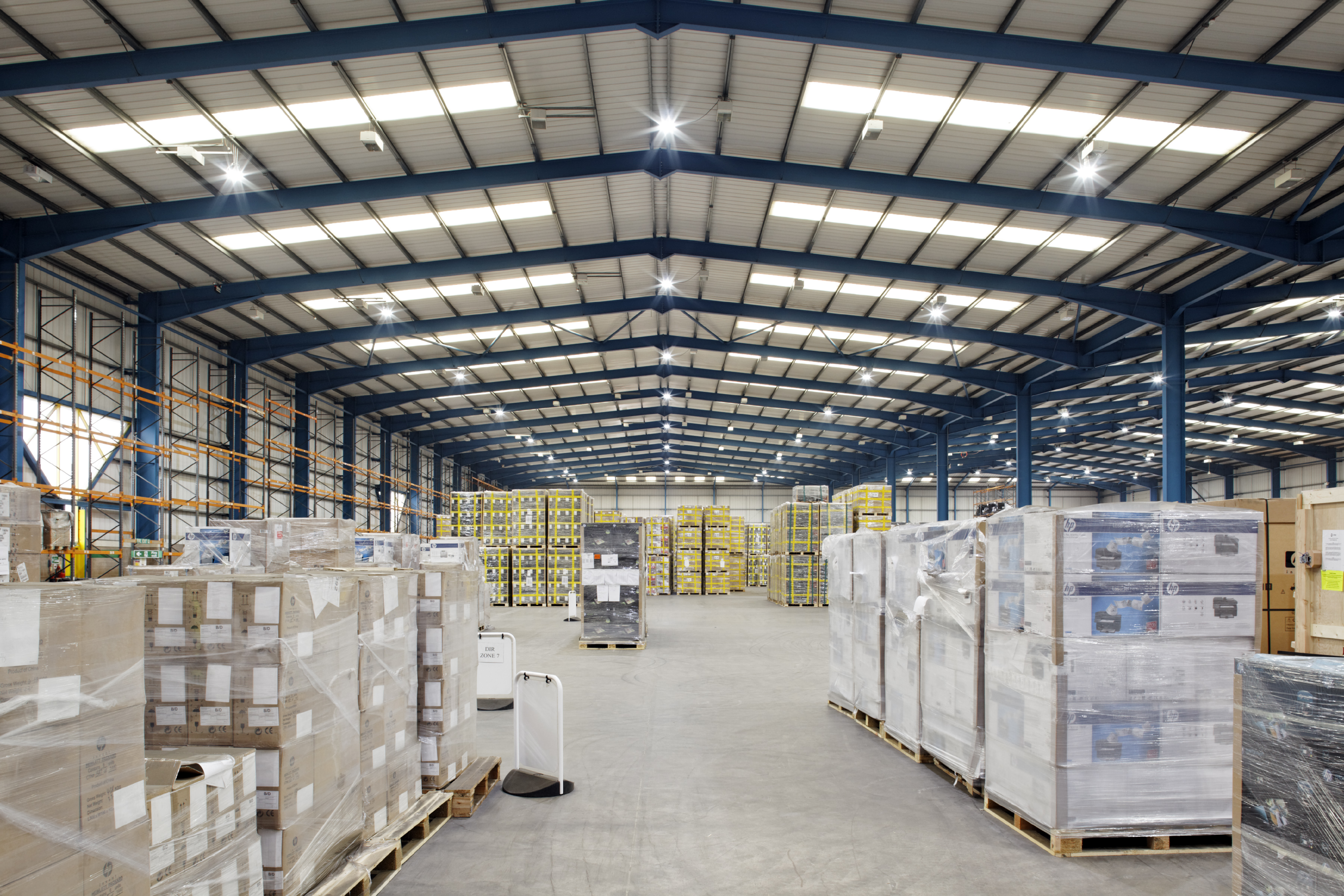

Kuehne and Nagel after installing Dialight LED LightingAfter trialing some LED light fittings at several locations, Kevin Greene selected Dialight’s DuroSite LED High Bay fittings for the two Minworth warehouses, installing 63 x 150W LED High Bays in each with three to a row compared to five HPS lights.

“The reason we chose Dialight is the length of time that the company has been in the market, whereas many of their competitors are relatively new. With the LED High Bay we have a very robust unit containing no hazardous materials that offers a 60,000 hour lifespan and is warranted by a well-established company. Not only does it remove the maintenance and the disposal problem, it’s also a very workable light, perfect for reading labels. We allowed a few extra fittings to avoid shadows and the light clarity experience is brilliant.”

The LED lighting in fact delivers a CRI of 72 compared to around 20 for HPS lighting out of a total scale of 100, so although the lux level of 150 remains very similar the lighting quality has vastly increased

Energy savings

Greene points out additional benefits:

“Although we installed light-saving devices with the sodiums, there was a 5-10 minute lag-time between switching them on and off, so we weren’t realising any particular benefit. The switching off also shortens the life of the lamps, but LEDs come on instantly and have no issues at all with switching.”

Installation Snapshot

  • Two warehouses jointly covering 20,000sqms/220,000 sqft
  • Number of LED fittings – 126
  • Replaced – 250W and 400W HPS with 150W LED High Bay
  • Illuminance level – 150 lux
  • Mounting height – 13 ms/43’
  • Energy saving –555,735 kWh, saving over £42,000 annually
  • Carbon reduction – 271 tonnes annually
  • Average w/sqm reduced from 3.85 to 1.05
  • Payback period of 1.1 years

About Kuehne + Nagel

With more than 58,000 employees at 900 locations in over 100 countries, the Kuehne + Nagel Group is one of the world’s leading logistics companies. Its strong market position lies in the seafreight, airfreight, contract logistics and overland businesses, with a clear focus on providing IT-based supply chain management services.
