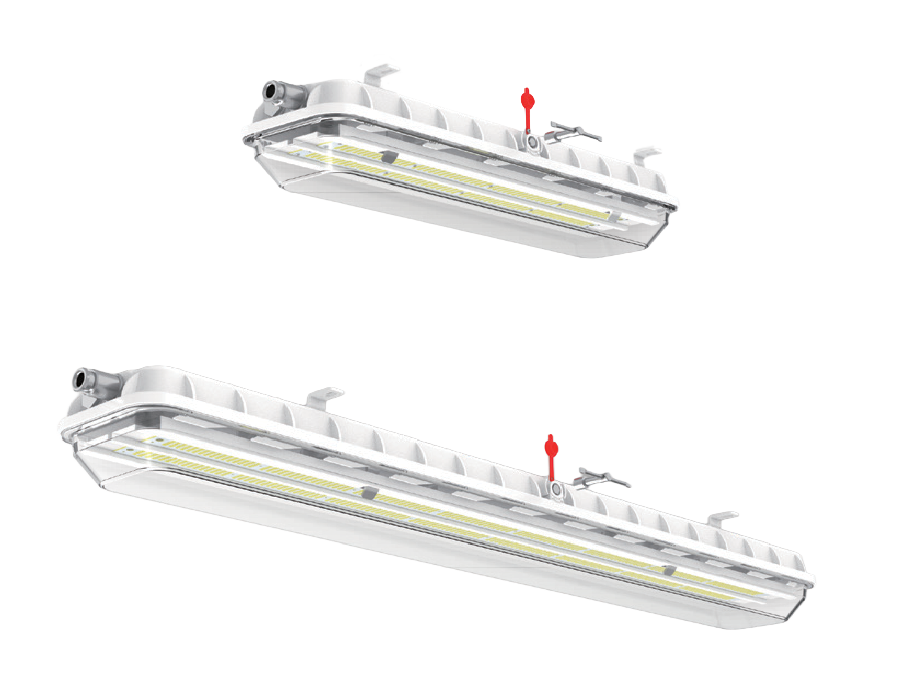

SafeSite® N-Series

SafeSite^® N-Series
Certification	IECEx/ATEX (Zone 1, 2, 21 & 22), CE, RCM
Ratings	IP66
Lens	Fiberglass Reinforced Polycarbonate
Beam Distribution	Circular
CCT & CRI	Cool White 5000K; Neutral White 4000K; 80 CRI (minimum)
Operating Voltage	100-277 VAC, 50/60Hz
Lumen Type	4,450 – 7,400 lumens
Mounting Options	(2) M8 fixing points; Other options available
Hardware/Cable Options	(2) M20 cable entries at both ends
Housing	Fibre Reinforced Plastic
Emergency Backup	Optional
Sizes	2ft and 4ft
Features & Benefits	5 year warranty Up to 145 lm/W Fibre Reinforced Plastic Housing IECEx/ATEX certified for Zone 1, 21 IP66 100-277 VAC M20 entry points at ends

Click on + to expand section and view contents

Spec & Data Sheets

IES Files

Installation Manuals

2D Drawings

Certifications

Standard Option

Non-Standard Option

Click HERE to be connected to a Dialight sales represetative who can help you.

Where to Buy Catalogs Warranty

Showing 4 Part Numbers:

Part #	Legacy Part #	Description
ELEA1C4RSSCB		SafeSite Emergency 4' Stainless Steel Linear, 5100 Lumens, 70 Watts, 230 - 240 VAC, Cool White, Polycarbonate Lens, [ATEX/IECEx Zone 1] Contact Us Where to Buy
ELA1C3MSSCB		SafeSite 2' Stainless Steel Linear, 2600 Lumens, 34 Watts, 110 - 250 VAC, Cool White, Polycarbonate Lens, [ATEX/IECEx Zone 1] Contact Us Where to Buy Contact Us Where to Buy
ELA1N3RSSCB		Safesite 4' Stainless Steel Linear, 5100 Lumens, 64 Watts, 110 - 250 VAC, Neutral White, 2 x M20 entries at either end, [ATEX/IECEx Zone 1] Contact Us Where to Buy Contact Us Where to Buy Contact Us Where to Buy
ELEA2N4RSSCB		SafeSite Emergency 4' Stainless Steel Linear, 5100 Lumens, 70 Watts, 230 - 240 VAC, Neutral White, 2 x M20 entries at either end, [ATEX/IECEx Zone 1] Contact Us Where to Buy Contact Us Where to Buy Contact Us Where to Buy Contact Us Where to Buy
